PCBL-R - Passive Chilled Beam Linear with Integrated Return
PCBL-ROverview
The Price Passive Beam with Integrated Return, PCBL-R, has all the same features as the PCBL but is used in applications where the unit is to be installed in the ceiling and a return air path is required. In order to ensure proper functionality of the PCBL-R, it is designed with its own plenum. Applications include drywall ceilings and T-bar ceilings with non-perforated ceiling tiles (or where perforated ceiling tiles are not ideal).
Features
- Operates without the need for supply air or primary air
- Integrated return air plenum for concealed installations that require separate return air path
- Perforated or grille face
- Extremely quiet operation
Casing Construction
- All-metal assembly
- Black powder coat finish
Water Coil Construction
- Aluminum fins
- Manufacturer pressure tested to 450 psi [3.1 MPa]
- Vent and drain
Water Connection Type
- Standard Connection Options:
- 1/2″ [13 mm] SWT
- 1/2″ [13 mm] NPT (female)
- Other connection types available
Options
- Optional tegular mounting frame
- Optional metric sizing available

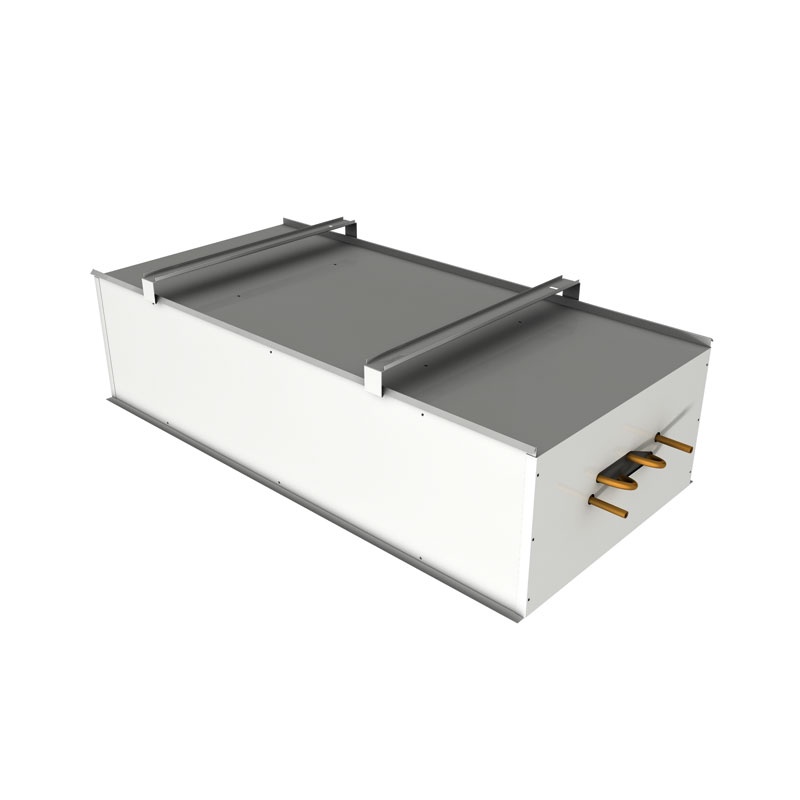

Passive Beam with Integrated Return

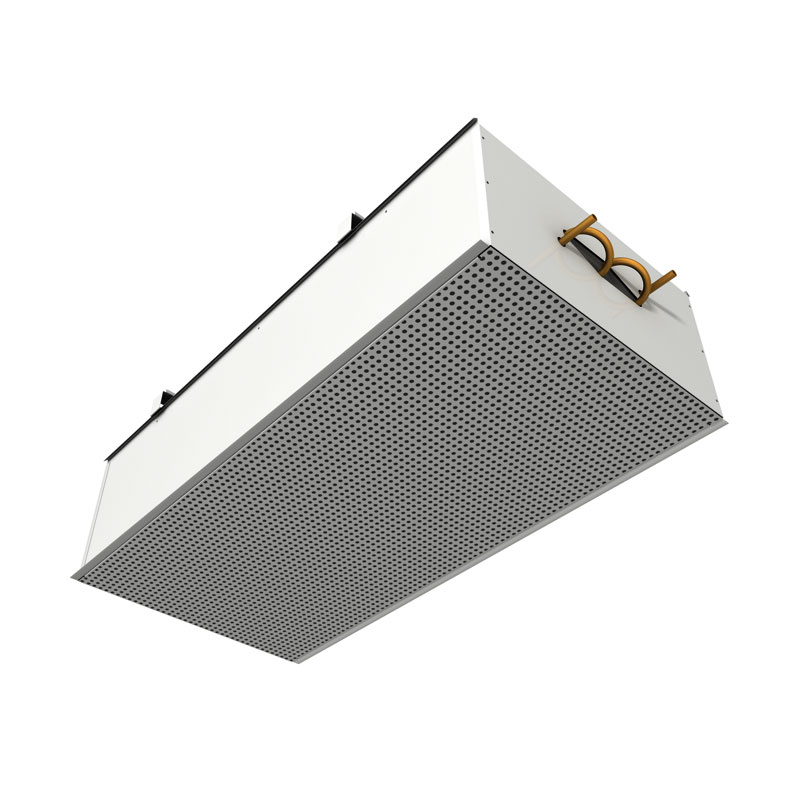

Perforated Face

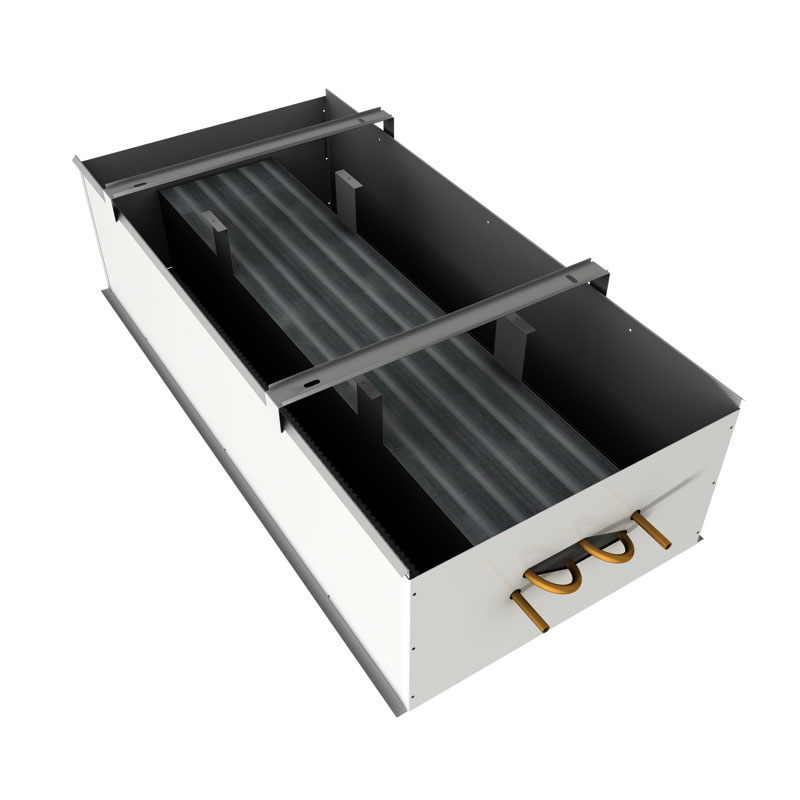

Water Coil
