TBD7 - T-Bar Diffuser, Fixed pattern
TBD7, TBR7Overview
The TBD7 is a fixed pattern, T-bar mounted linear slot diffuser designed to provide high air capacity with a tight horizontal air pattern. Designed for flexible duct connections, TBD7 diffusers can be easily installed in most T-bar suspension ceiling systems. Matching return diffusers are available to complement supply units and maintain the architectural feel throughout the space.
Typical Applications
The TBD7 is a fixed-louver t-bar diffuser that is well suited to office space applications as it provides a reliable, tight horizontal airflow pattern and integrates easily with suspended ceiling systems.
Construction Options
- Application
- Supply (TBD7)
- Return (TBR7)
- Number of Slots
- 1 to 4
- Airflow
- 1-Way
- 2-Way
- Options
- Internal insulation
- External insulation
- Center notch
- Straddle mountin
Fixed Pattern T Bar Diffuser
Fixed Pattern T Bar Diffuser 2

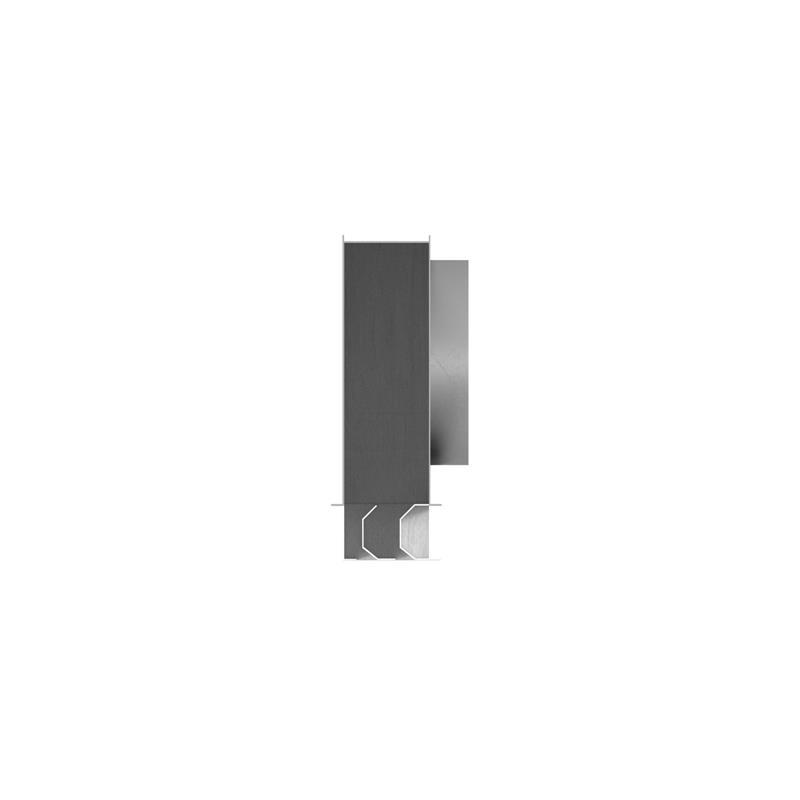

Fixed Pattern T Bar Diffuser 3

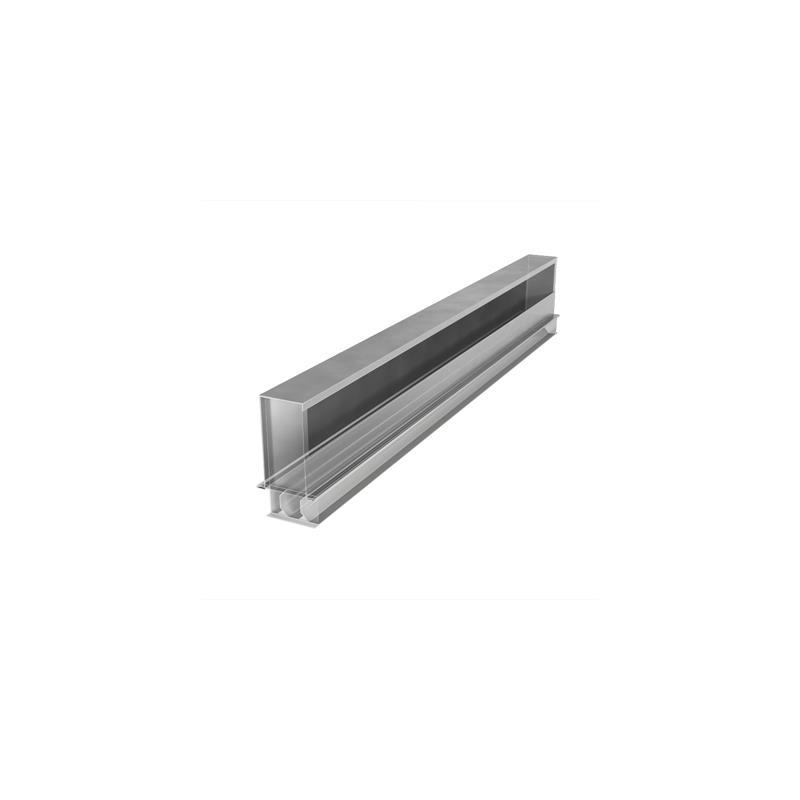

Fixed Pattern T Bar Diffuser 5

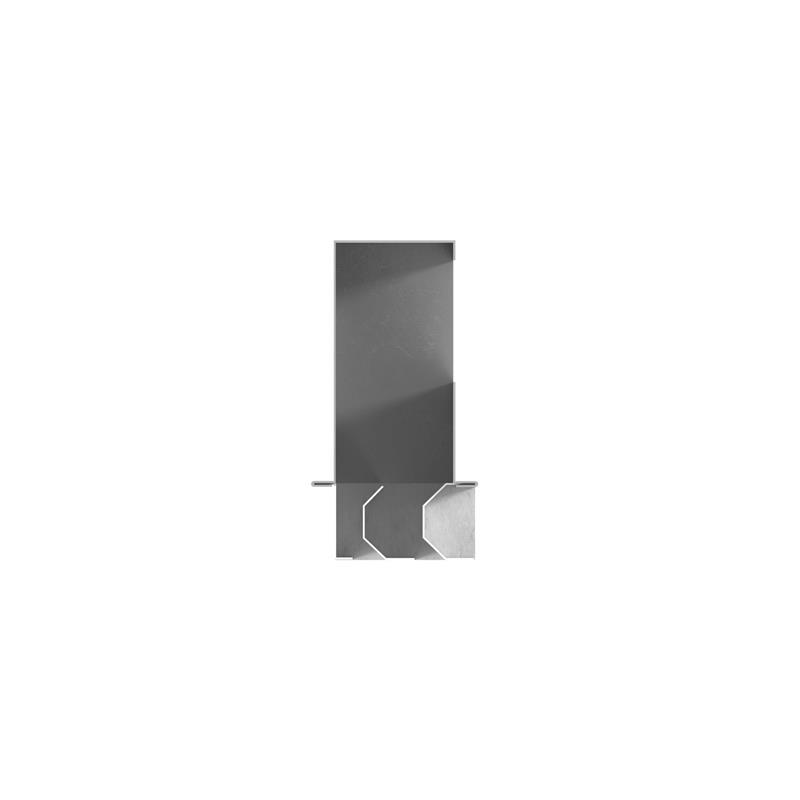

Fixed Pattern T Bar Diffuser 6
